TUNNEL 50 TWIN
TUNNEL 50 TWIN
TUNNEL 50 TWIN

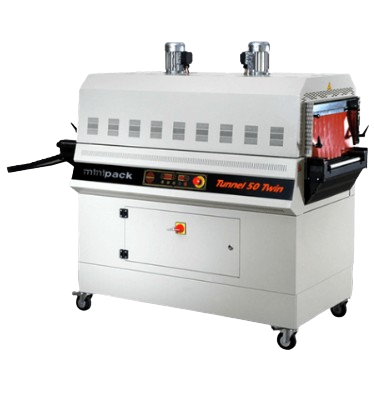

Dual-chamber heat-shrinking tunnel - Tunnel mouth 450×210 mm
DESCRIPTION
TUNNEL 50 TWIN has been designed to solve the needs to pack small product at high speed with great technical and esthetical results. Double heating chamber, double heating regulation, excellent thermal insulation, high speed belt and high speed shrink, great air flow control makes this shrink tunnel the perfect tool to solve any kind of shrink problem with the maximum efficacy.
TECHNICAL FEATURES
| Electrical power supply | 200V 50/60Hz 3Ph |
| 208V 60Hz 3Ph | |
| 220V 50/60Hz 3Ph | |
| 400V 50/60Hz 3Ph | |
| MAX power installed | 14,0 kW (200V) |
| 15,0 kW (208V) | |
| 14,0 kW (220V) | |
| 14,5 kW (400V) | |
| Maximum current | 38 A (200V) |
| 43 A (208V) | |
| 34 A (220V) | |
| 21 A (400V) | |
| MAX product size | 400x190 mmxl. (The maximum length depends on the shape, conveyor belt speed and type of film, etc.) |
| Machine dimensions | 2130x800x1460 mm |
| Machine weight (Net/Gross) | 260/318 kg |
| Tunnel infeed dimensions | 450x210 mm |
